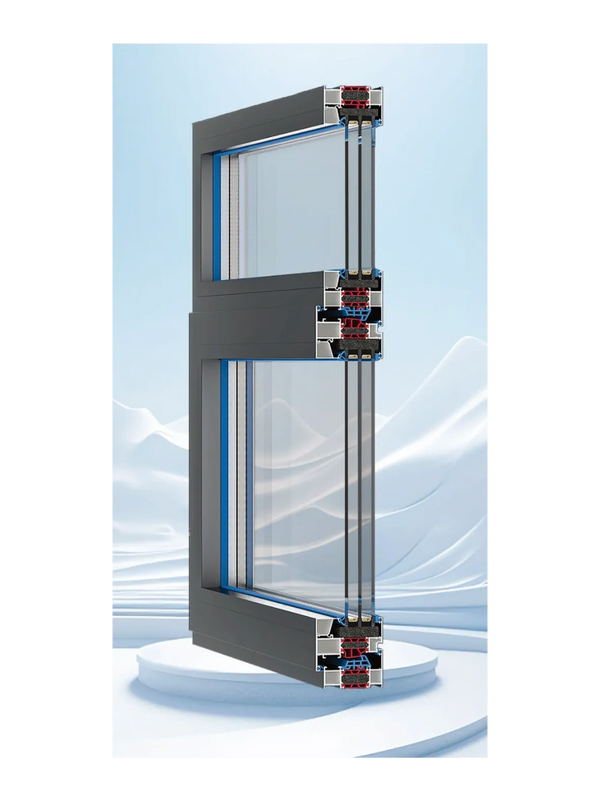

铝合金 CN75 Window System

---

型材型厚  Profile wall thickness

                1.8mm

外框宽度  Outer frame width

                75mm

扇料        Window sash width

                75mm*35.3mm (玻扇Glass sash)

                75mm*35.3mm (纱扇Screen sash)

玻璃配置  Glass configuration

                 5+12A+5+12A+5,

五金配置  Hardware configuration

                标配坚朗五金、国强五金

                Standard Configuration Kinlong & Assa Abloy Hardware

纱网         Screen mesh configuration

                304不锈钢材质

                Made of 304 stainless steel material

胶条         Rubber strip

                 汽车级三元乙丙密封胶条

                 Automotive-grade EPDM sealing strip

隔热条      Insulation strip configuration

                 国标 PA66GF25 材质

                 National standard material of PA66GF25

气密性  Air tightness

             8 级 (Grade 8)

抗风压  Wind pressure resistance

             9 级 (Grade 9)

保温性  Thermal insulation performance

             7 级 (Grade 7)

水密性  Water tightness

             6 级 (Grade 6)

隔音性  Sound insulation

             4级 (Grade 4)
