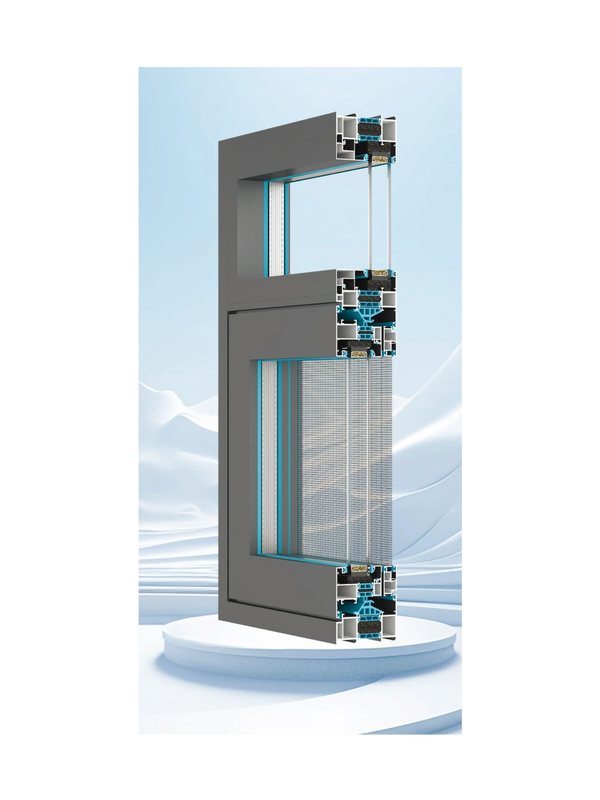

铝合金 CN105 Window System

---

型材型厚  Profile wall thickness

                1.8mm

型材材料  Profile material

                高抗冲塑料型材(深灰色)

                High-impact plastic profiles (dark gray)

玻璃配置  Glass configuration

                 5+22A+5

五金配置  Hardware configuration

                 MACO 隐藏式内平开下悬五金 +HOPPE 执手

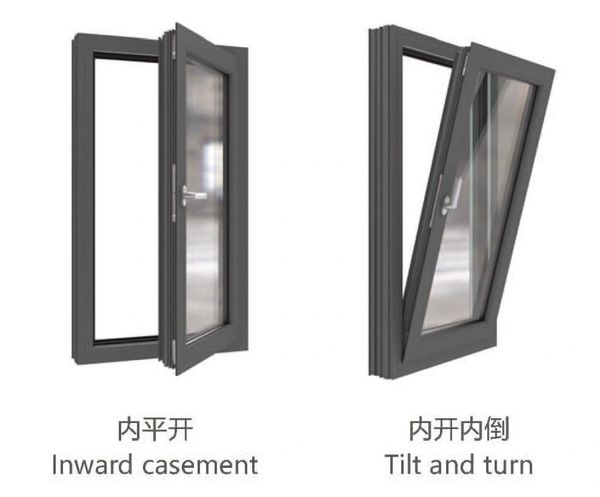

                 MACO concealed tilt-turn hardware + HOPPE handle

纱网         Screen mesh configuration

                304不锈钢材质

                Made of 304 stainless steel material

胶条         Rubber strip

                 国标汽车级三元乙丙胶条

                 National standard automotive-grade ethylene

                 propylene diene monomer (EPDM) rubber strips

产品特点  Product Features

                1. 型材壁厚 2.5mm，满足建筑用塑料窗国家标准 GB/T28887-2012 要求。

                2 .一体化金刚纱设计，防蚊虫、防盗、防止高空坠落，整窗安全性能高。

                3. 中空带雾化功能玻璃既具备安全玻璃的特性，又能达到隐私保护目的。

                4. 配备智能新风系统,可遥控、可语音,操作简单,每天24小时为您提供新鲜干净、高品质的空气。

                1. The profile wall thickness is 2.5mm, meeting the requirements of the national standard for plastic windows for construction GB/T28887-2012.

                2. Integrated diamond mesh design, which is anti-mosquito, anti-theft, and prevents high-altitude falls, ensuring high safety performance of the whole window.

               3. Insulating glass with atomization function not only has the characteristics of safety glass but also can achieve the purpose of privacy protection.

               4. Equipped with an intelligent fresh air system, which can be controlled by remote control and voice, with simple operation, providing you with fresh, clean and high-quality air 24 hours a day.

气密性  Air tightness

             8 级 (Grade 8)

抗风压  Wind pressure resistance

             9 级 (Grade 9)

保温性  Thermal insulation performance

             7 级 (Grade 7)

水密性  Water tightness

             5 级 (Grade 5)

隔音性  Sound insulation

             4级 (Grade 4)
