塑钢 ES75 Window System

---

型材型厚  Profile wall thickness

                1.8mm

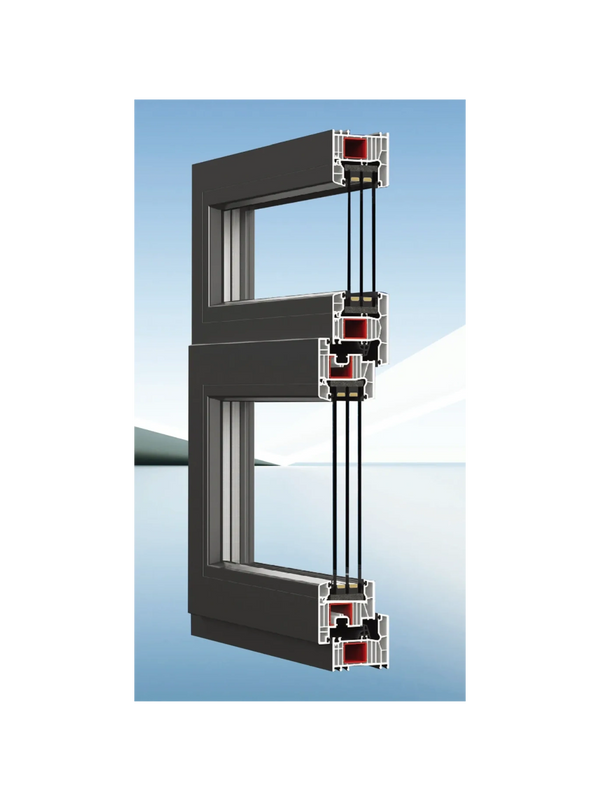

产品结构  Product structure

                75mm/6 腔体3座封

                75mm,6 chambers with 3 seals

增强型钢  Reinforced steel

                2.0mm 厚钢衬

                2.0mm thick steel liner

五金配置  Hardware configuration

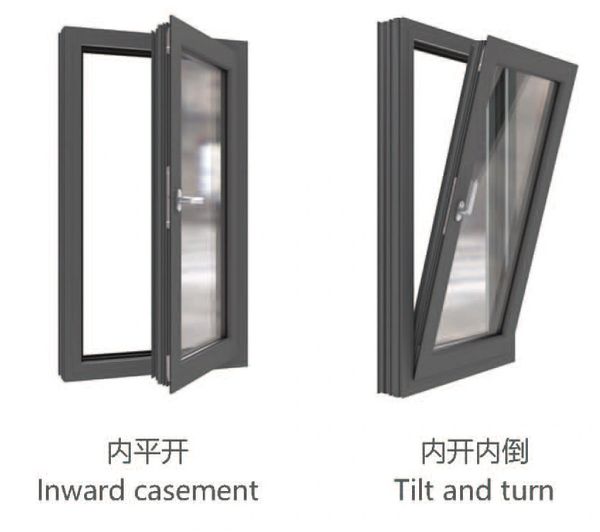

               德国进口内平开下悬窗五金

               German imported hardware for inward opening

玻璃配置  Glass configuration

                 5+12A+5+12A+5, 采用 Low-E 玻璃可配置夹胶中空玻璃、真空玻璃

                 5+12A+5+12A+5, using Low-E glass Laminated insulating glass and vacuum glass can be configured

玻璃厚度  Glass thickness

                 30mm、36mm、40mm、42mm、45mm

胶条         Rubber strip

                 汽车级三元乙丙密封胶条

                 Automotive-grade EPDM sealing strip

框扇         Frame and sash

                角部焊接，更坚固，不易变形

                 Corner welding, stronger and less likely to deform

气密性  Air tightness

             8 级 (Grade 8)

抗风压  Wind pressure resistance

             7 级 (Grade 7)

保温性  Thermal insulation performance

             2.0~1.3W/( ㎡·K)

水密性  Water tightness

             5 级 (Grade 5)

隔音性  Sound insulation

             Rw ≥ 44dB
